6fc9b23e9f
Replaces the bare fmt.Errorf wrappers on the Errors channel with three
typed errors and adds an Event.AfterReconnect flag so consumers can
distinguish post-recreate replay events from live ones.
Typed errors
------------
ErrPullFailed, ErrRenewFailed, ErrRecreateFailed all implement
Unwrap() and Op() Op. Consumers can branch with errors.As without
parsing strings:
var pull ErrPullFailed
if errors.As(e, &pull) { /* transient; logged */ }
var recreate ErrRecreateFailed
if errors.As(e, &recreate) { /* alert: camera may be offline */ }
Op() returns OpPull / OpRenew / OpRecreate for cases where the caller
wants to log the operation name without unwrapping. Both addressed
the review's 'highest-leverage v1 change' concern about bare error on
the Errors channel.
AfterReconnect observability
----------------------------
ONVIF cameras replay each property's current value with
PropertyInitialized whenever a new pull-point subscription is
established (per the Event Service spec). A consumer doing edge
detection on motion = StateActive would otherwise see a phantom
'motion started' for every active property after every reconnect.
The pull loop now tracks an afterReconnect flag local to the
goroutine: set to true when attemptRecreate returns justRecreated,
applied to every emitted event, cleared on the first non-Initialized
event we see. This bounds the replay window naturally — once the
camera has finished sending current state, the next event tells us
we're live.
attemptRecreate now returns (justRecreated, cont) so the pull loop
knows whether the just-completed recreate succeeded vs. the call
returning due to ctx-cancel during backoff.
Test coverage
-------------
* errors_test.go: typed-error Unwrap/Op assertions plus
Stream-level proof that pull and recreate failures arrive on the
Errors channel wearing the right type.
* AfterReconnect flag: drives the stream through a failure, observes
the next event carries the flag and the one after does not.
Onvif library
Simple management of onvif IP-devices cameras. onvif is an implementation of ONVIF protocol for managing onvif IP devices. The purpose of this library is convenient and easy management of IP cameras and other devices that support ONVIF standard.
Overview
This repository is forked from: use-go/onvif
Supported services
The following services are implemented:
- Device
- Media
- PTZ
- Event
- Discovery
Using
General concept
- Connecting to the device
- Authentication (if necessary)
- Defining Data Types
- Carrying out the required method
Connecting to the device
If there is a device on the network at the address 192.168.13.42, and its ONVIF services use the 1234 port, then you can connect to the device in the following way:
dev, err := onvif.NewDevice(onvif.DeviceParams{Xaddr: "192.168.13.42:1234"})
The ONVIF port may differ depending on the device , to find out which port to use, you can go to the web interface of the device. Usually this is 80 port.
Authentication
If any function of the ONVIF services requires authentication, you must use the Authenticate method.
device := onvif.NewDevice(onvif.DeviceParams{Xaddr: "192.168.13.42:1234", Username: "username", Password: password})
Defining Data Types
Each ONVIF service in this library has its own package, in which all data types of this service are defined, and the package name is identical to the service name and begins with a capital letter. onvif defines the structures for each function of each ONVIF service supported by this library. Define the data type of the GetCapabilities function of the Device service. This is done as follows:
capabilities := device.GetCapabilities{Category:"All"}
Why does the GetCapabilities structure have the Category field and why is the value of this field All?
The figure below shows the documentation for the GetCapabilities. It can be seen that the function takes one Category parameter and its value should be one of the following: 'All', 'Analytics',' Device ',' Events', 'Imaging', 'Media' or 'PTZ'`.
An example of defining the data type of GetServiceCapabilities function in PTZ:
ptzCapabilities := ptz.GetServiceCapabilities{}

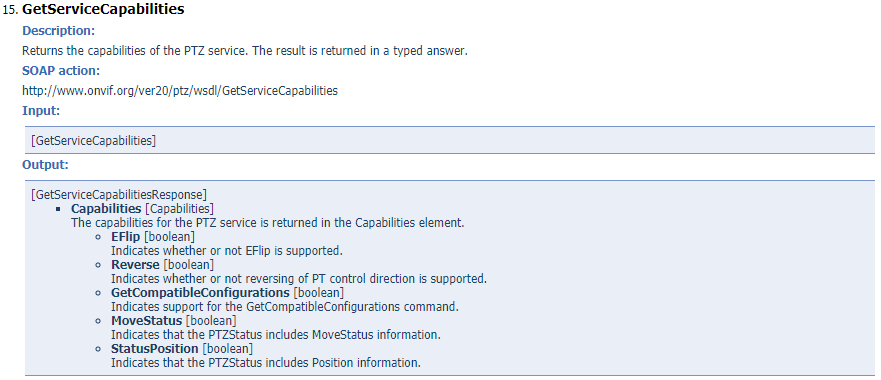

The figure below shows that GetServiceCapabilities does not accept any arguments.
Common data types are in the xsd/onvif package. The types of data (structures) that can be shared by all services are defined in the onvif package.
An example of how to define the data type of the CreateUsers function in Devicemgmt:
createUsers := device.CreateUsers{User: onvif.User{Username:"admin", Password:"qwerty", UserLevel:"User"}}
The figure below shows that ,in this example, the CreateUsers structure field must be a User whose data type is the User structure containing the Username, Password, UserLevel, and optional Extension fields. The User structure is in the onvif package.
Carrying out the required method
To perform any function of one of the ONVIF services whose structure has been defined, you must use the CallMethod of the device object.
createUsers := device.CreateUsers{User: onvif.User{Username:"admin", Password:"qwerty", UserLevel:"User"}}
device := onvif.NewDevice(onvif.DeviceParams{Xaddr: "192.168.13.42:1234", Username: "username", Password: password})
device.Authenticate("username", "password")
resp, err := dev.CallMethod(createUsers)
Development
See here
